Kelford Cams Hydraulic Cam Set; Hot Street Cam; For Turbo Upgrade 1988 Mazda 323

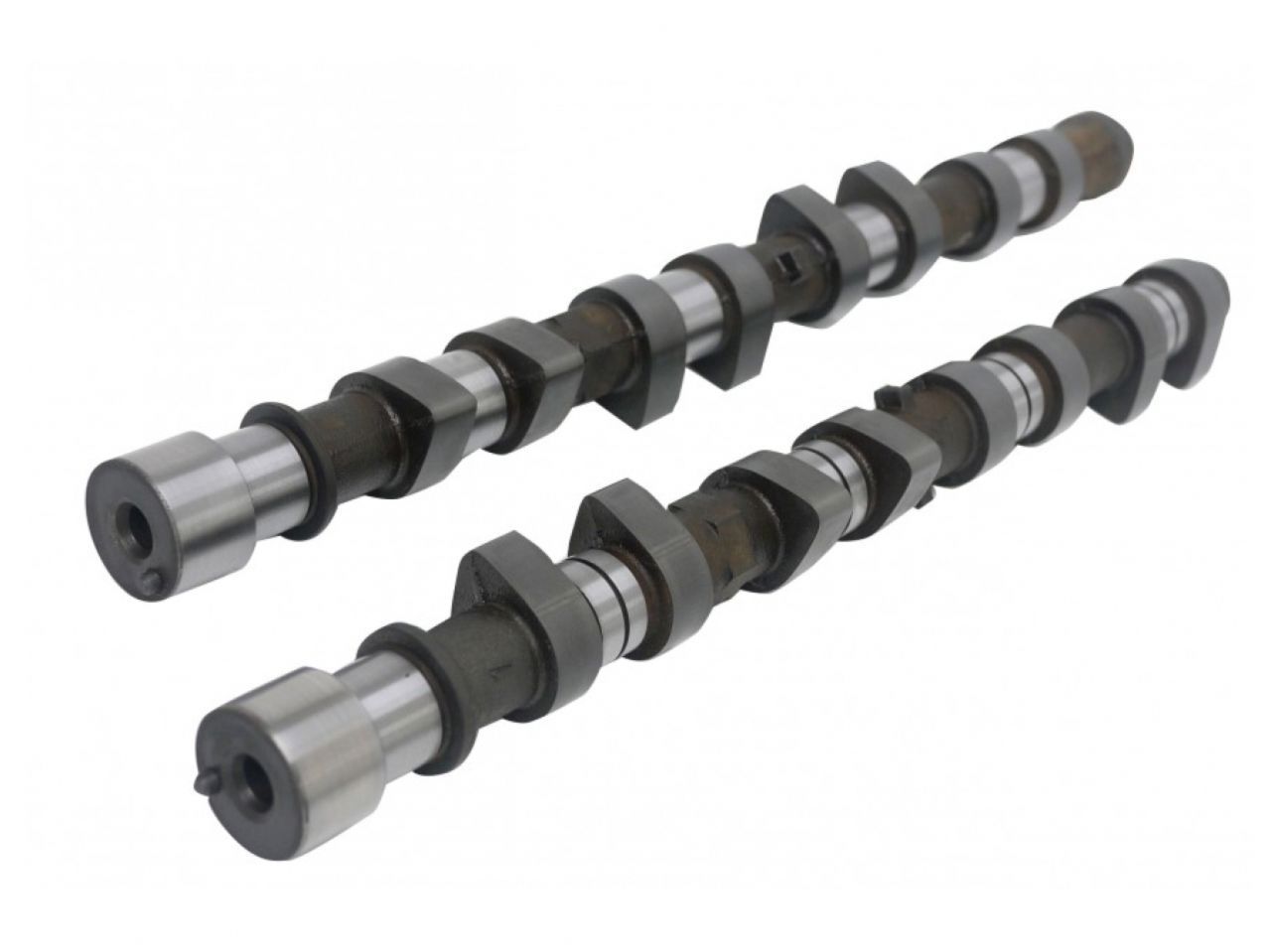

Camshaft Set

264/264 Degrees advertised duration, 8.95mm/8.95mm lift.

Additional Information
High performance cams to suit hot street or rally applications. Requires KVS12 valve springs.

Engine Make:		Engine Model:				Part Number:
MAZDA		Miata 323 B6 Turbo				-
Valve Clearance:		Intake:		Set		at the
		Exhaust:		Set		at the
Cam Lift:		Intake:			8.95mm	Exhaust:	8.95mm
Rocker Ratio:		Intake:			1	Exhaust:	1
Nett Valve Lift:		Intake:			8.95mm	Exhaust:	8.95mm
Advertised Duration @	0.10mm	Intake:			264	Exhaust:	264
Duration @	1.00mm VALVE LIFT	Intake:			222	Exhaust:	222
Timing @	1.00mm VALVE LIFT	IVO:			1 BTDC	EVO:	43 BBDC
		IVC:			41 ABDC	EVC:	1 BTDC
Suggested Centre Lines:		Intake:			110	Exhaust:	112
VALVE	Lift @ TDC	Intake:			1.10mm	Exhaust:	0.96
